| Basic information | |||
| Announcement type: | ZZ3317V386HE1 | Driving form: | 8X4 |
| Wheelbase: | 1950+3825+1350mm | Engine: | Sinotruk MC11.44-50 |
| Transmission: | Sinotruk HW25712XS | Rear axle speed ratio: | 4.77 |
| Body length: | 10.765 meters | Body width: | 2.55m |
| Body height: | 3.49m | Front wheel base: | 2022/2022mm |
| Rear wheel base: | 1830/1830mm | Vehicle weight: | 15.2 tons |
| Rated load: | 15.67 tons | Total mass: | 31 tons |
| Tonnage class: | Heavy truck | Approach Angle: | 16 degrees |
| Departure Angle: | 22 degrees | ||
| Market segments: | Urban waste, road transport | Total speed ratio: | 5.45 |
| Engine parameter | |||
| Engine type: | Sinotruk MC11.44-50 | Engine brand: | Sinotruk |
| Number of cylinders: | 6 | Type of fuel: | Diesel oil |
| Displacement: | 10.518 L | Emission standard: | Five kingdoms |
| Maximum horsepower: | 440 horsepower | Maximum output power: | 324kW |
| Maximum torque: | 2100 n. m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine form: | In-line, water-cooled, four-stroke, supercharged and intercooled |
| Container parameter | |||
| Length of container: | 7.6 m | Width of container: | 2.35m |

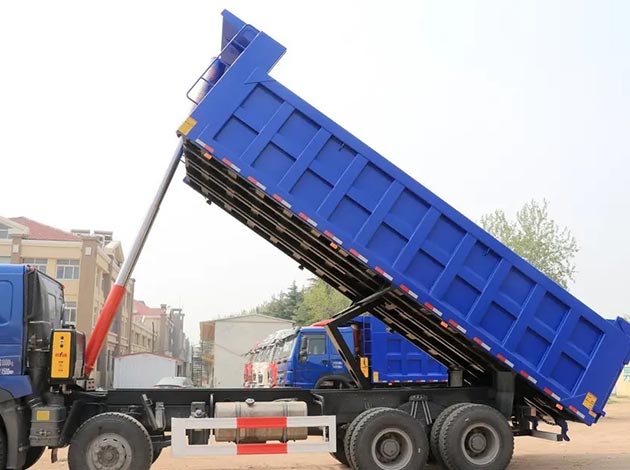

| Container height: | 1.5m | Container form: | Self-discharging type |
| Cab parameters | |||
| Cab: | T7H-W | ||
| Transmission parameter | |||
| Transmission model: | Sinotruk HW25712XS | Transmission brand: | Sinotruk |
| Forward gear: | 12th gear | Number of reversals: | 2 |
| Oil tank | |||
| Fuel tank material: | Aluminium alloy | Tank capacity: | 400L |
