Shacman M3000 Truck 20-40T New&Used | Machinery Global Supplier

Description

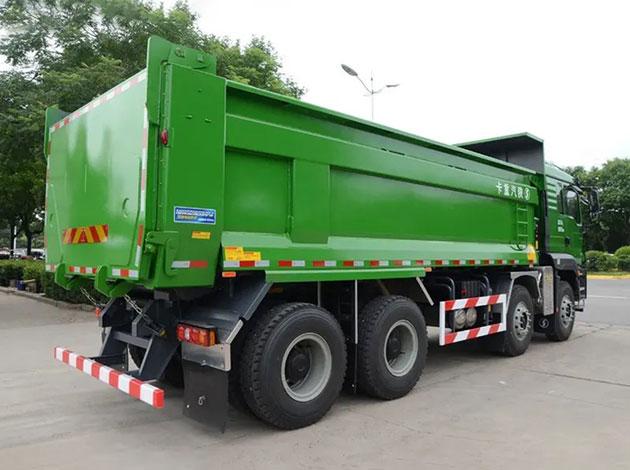

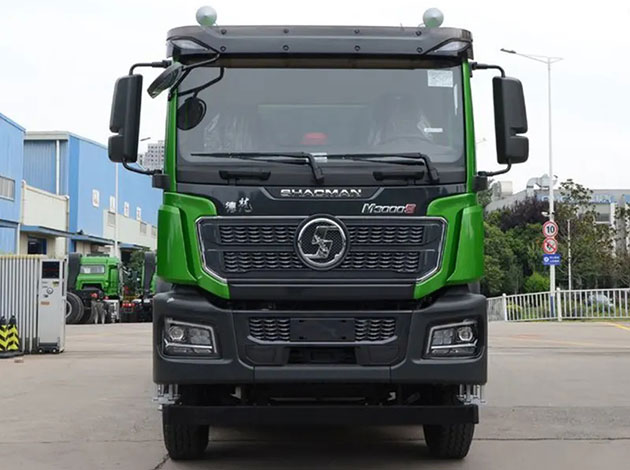

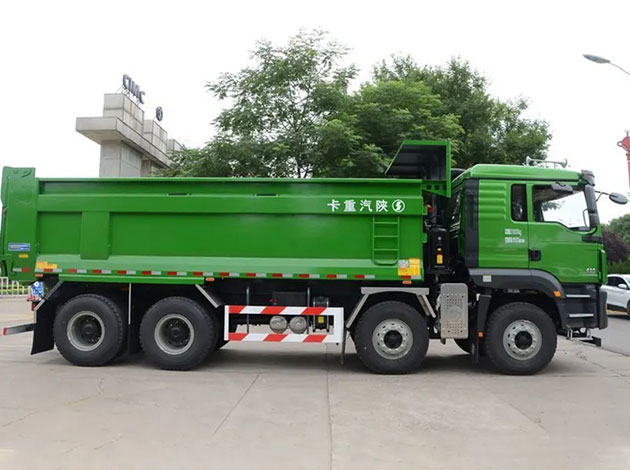

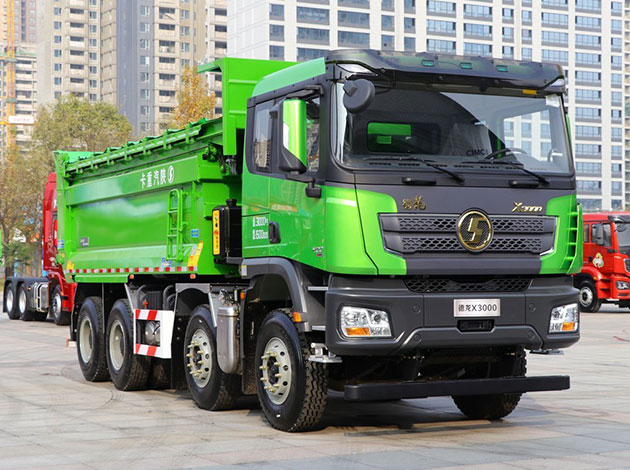

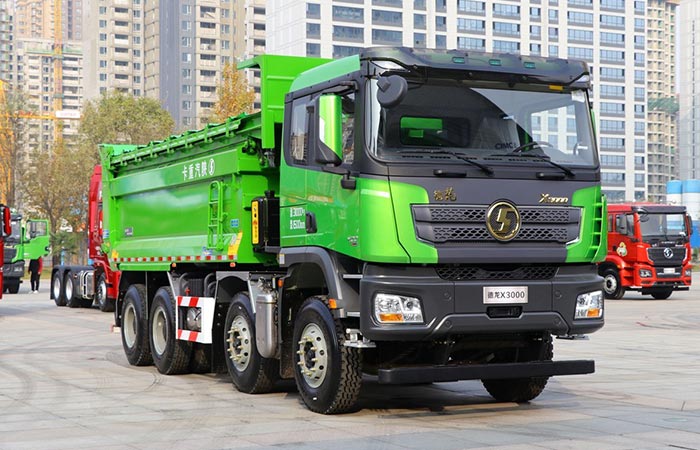

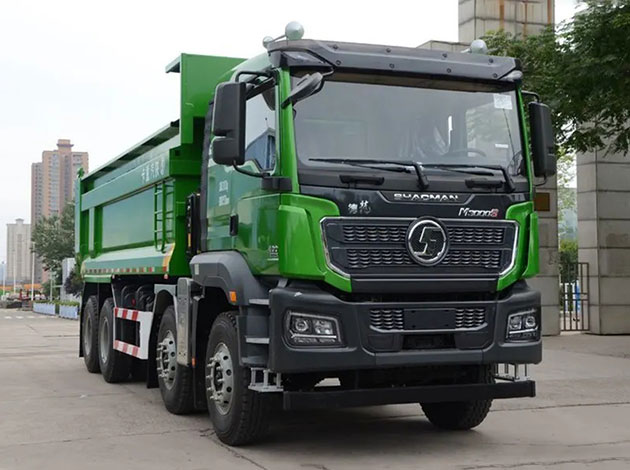

The Shacman truck combines performance with a powerful powertrain and a solid chassis. The Shacman M3000 has a maximum load of 40 tons, ensuring efficient transportation and helping you meet various engineering challenges. The well-designed cab provides a comfortable operating environment, and the advanced safety system ensures the safety of the operator. Whether in construction, mining or earthmoving, Shacman truck are your reliable partner to keep projects moving smoothly.

Parameter

Specifications

Max. running speed (km/h)		82
Drive System		8×4
Capacity (Load)		20-40T
Dimensions （LWH）(mm)	Overall	9735×2490×3790
	Dump body	7600×2300×1700
Thickness (mm)		Bottom 8, side 6
Hydraulic lifting system		Ф200 Before the lifting Ф200
Approach / departure angle (°)		28 / 20
Kerb weight (kg)		15500
Total mass (kg)		31000
Wheel base (mm)		1800+3775+1400
Engine		WEICHAI WP10.380E201 Euro Ⅱ
Horsepower		420 hp
Gearbox		FAST 10JSD180
Clutch		Ф 430 Diaphragm type Ф 430
Steering		ZF technology
Cab		F3000 mid-lengthened Cabin with single-sleeper F3000
Axle	Front axle	9.5T MAN
	Rear axle	16Ton MAN axle, final ratio 5.262
Tyre (radial tyre)		12.00R20
Oil tank		300L(Metal)

FAQ

If you have any other questions, please feel free to ask

Setting trade services and global marketing in one, and strive to be China's first-class international export group.

Tel : 0086-0371-63688886

How long will I receive the truck after payment? And what is your payment term?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

Why is your price a little higher than other Chinese brand trucks?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

What warranty do you provide for your Dongfeng truck?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

Shacman Truck 20-40T
