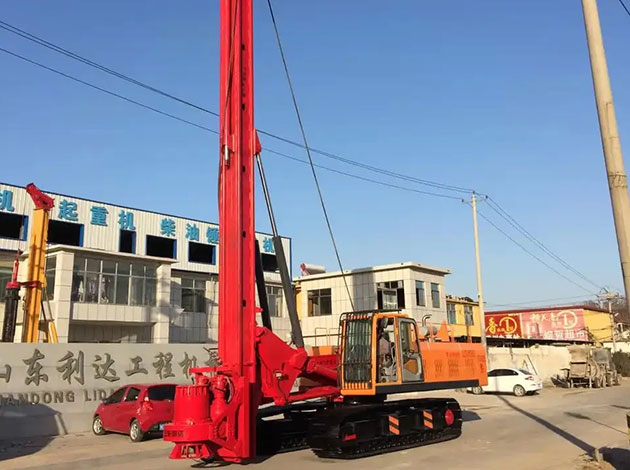

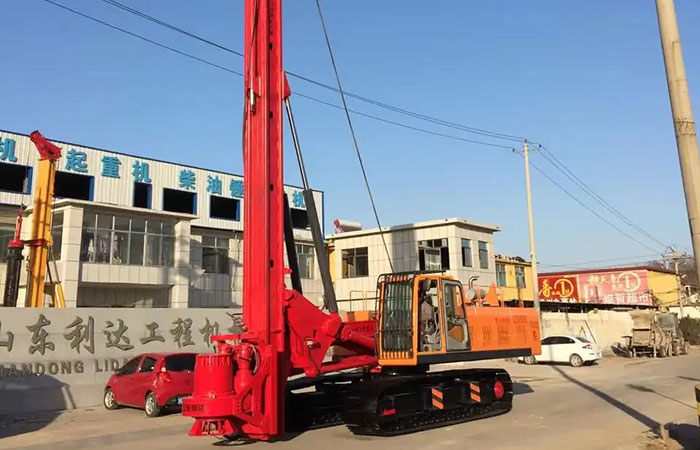

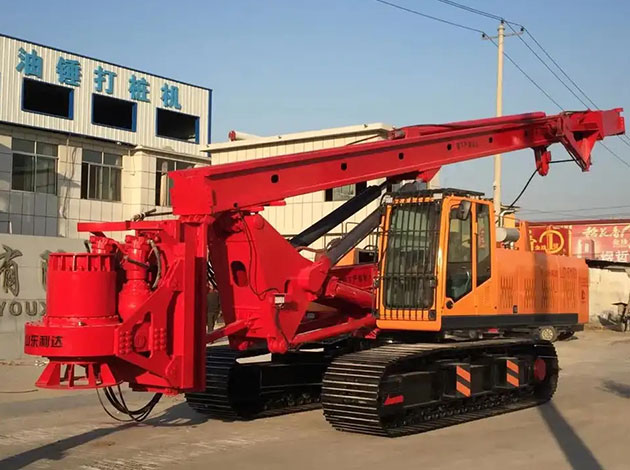

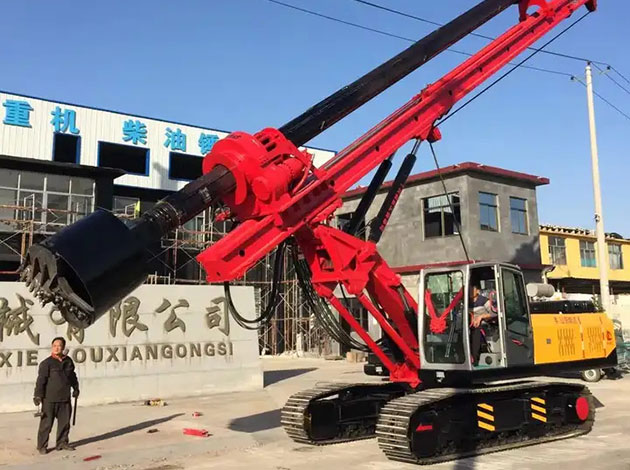

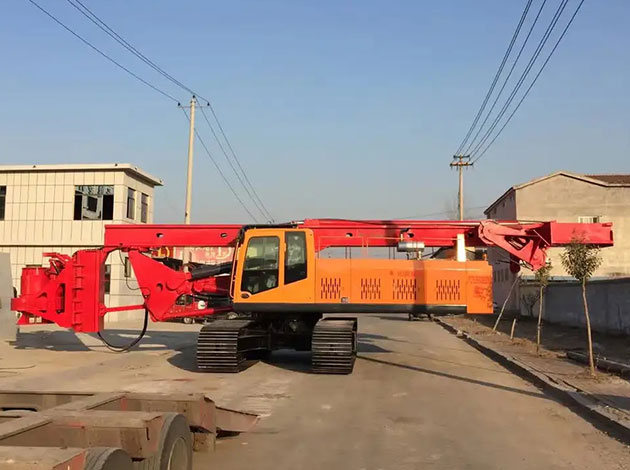

This rotary drilling machine can drill holes to depths of up to 65 meters and handle a wide range of projects from construction to geotechnical investigation.
Share :
Description
This rotary drilling machine can drill holes to depths of up to 65 meters and handle a wide range of projects from construction to geotechnical investigation. Its solid construction and advanced technology ensure optimum performance and durability even under the toughest conditions. This rotary drilling machine is also equipped with user-friendly controls and safety features that increase operational efficiency while prioritizing worker comfort. Experience the future of drilling with our rotary drilling machines for unparalleled results.
Parameter
Specifications
Description Unit Date
Max. Drilling Diameter mm 1800
Max. Drilling Depth m 65
Engine Model / GBT5.9-C325
Rated Power kW 242
Rotary Drive Max. output torque kN .m 220
Rotary speed r/min 7-22
Pull-Down Cylinder Max.pull-down piston push kN 180
Max.pull-down piston pull kN 180
Max.pull-down piston stroke mm 5000
Main Winch Max.pulling force kN 210
Max. single-rope speed m/min 60
Auxiliary Winch Max.pulling force kN 30
Max. single-rope speed m/min 50
Traveling Max. traveling speed km/h 1.8
Max.grade ability % 30
Overall Drilling Weight t 66
Dimension Transportation condition)(L×W×H mm 16000×3200×3700
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
