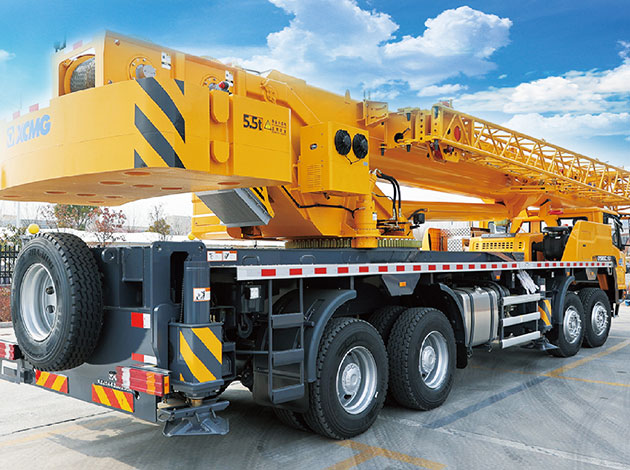

XCMG QY50K5C_1 50T Crane
XCMG QY50K5C_1 50T Crane
XCMG QY50K5C_1 50T Crane

XCMG QY50K5C_1 50T Crane

This XCMG QY50K5C_1 50t crane implements proprietary composite control technology and has excellent control performance. Proprietary dual-pump automatic dividing and merging control technology, G-class special chassis.
Share :
Description
This XCMG QY50K5C_1 50t crane implements proprietary composite control technology and has excellent control performance. Proprietary dual-pump automatic splitting and merging control technology. When the hoisting, luffing, and boom operations are performed independently, the two pumps merge to supply oil, making the operation efficient. During compound action, the dual pumps are automatically diverted and controlled to achieve compounding under any working conditions, and the compound action has good coordination. In addition, this 50t crane adopts a G-class special chassis, which has strong load-bearing capacity, high climbing ability and low fuel consumption.
Parameter
Specifications
item value
Parameter item QY50K5C_1
Overall length of the machine 14330 mm
Full width of the machine 2800 mm
Overall height of the machine 3660 mm
Wheelbase 1470+4500+1350 mm
Total mass in driving state 43800 mm
Self-disassembling balance weight quality 9500 KG
Axle load 9000/9000/12900/12900KG
engine model WP9H336E62(SC10E380Q6)
Engine rated power 247/1900(279/1900) kw/(r/min
Engine rated torque 1600/1000~1400(1600/1100~1400 ) N.m/(r/min
Maximum driving speed 90km/h
Minimum stable driving speed 2.5~3km/h
Fuel consumption per 100 kilometers 40 L
Maximum rated total lifting capacity 50T
Minimum rated amplitude 3M
Maximum lifting moment of basic arm 1985 kN·m
Turntable tail turning radius 4150 mm
Longest main arm 46 m
The longest main arm + auxiliary arm 62
