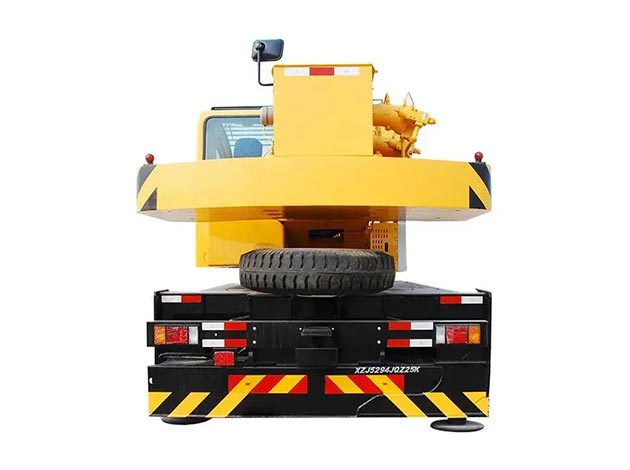

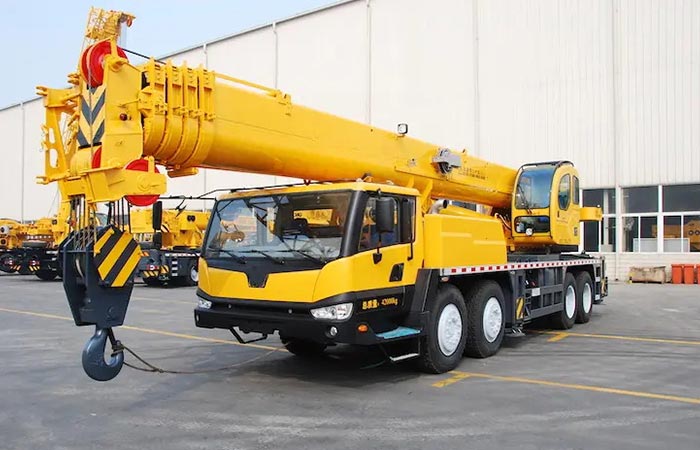

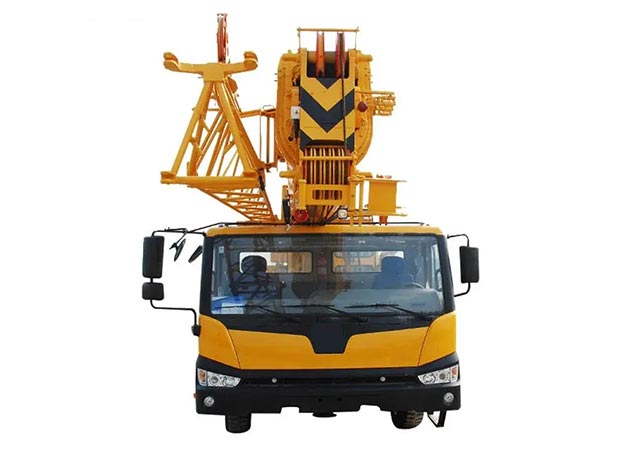

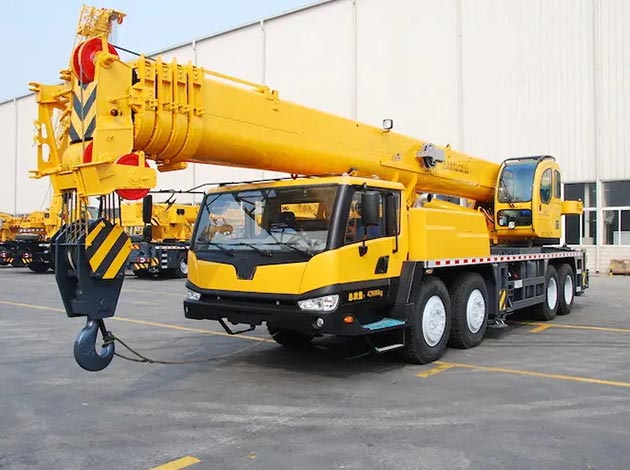

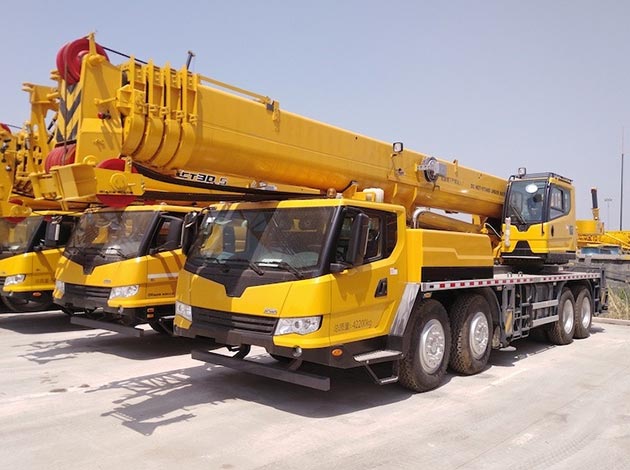

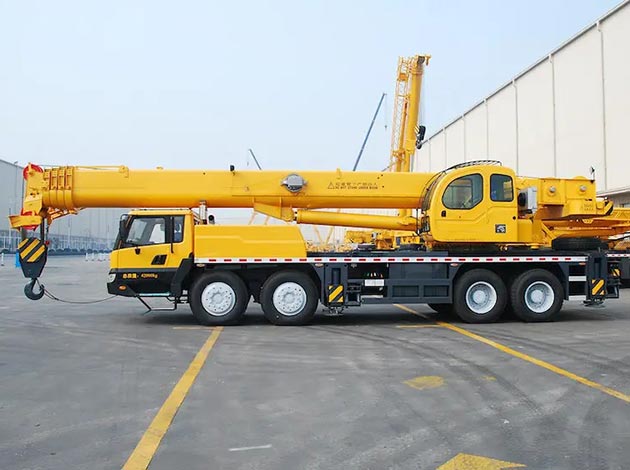

This 50 ton mobile crane has a maximum working radius of more than 50 meters, adapting to various working distance and height requirements.
Share :
Description
This 50 ton mobile crane represents the pinnacle of performance and versatility. Its powerful lifting capabilities make it suitable for a variety of large-scale construction, infrastructure and industrial projects, and can handle heavy-duty lifting tasks with ease. Equipped with a telescopic arm, the maximum working radius can reach more than 50 meters, adapting to various working distance and height requirements. This 50 ton mobile crane is suitable for a variety of applications including construction, bridges, wind farms, ports and oil and gas facilities. Easy to assemble and disassemble, easy to transport to different project sites.
Parameter
Specifications
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
How Can I Buy Products from You?
A Reliable Dealer & Trader
Tarzan warmly welcomes every customer from overseas to visit our company to establish cooperation. For more frequently asked questions about buying,
Leave your requirements on this website. We will reply to you as soon as possible.
50 Ton Mobile Crane
50 ton mobile crane specifications
Dimension Unit QY50KA
Overall length mm 13750
Overall width mm 2800
Overall height mm 3520
Weight
Total weight in travel kg 41000
Front axle load kg 15000
Rear axle load kg 26000
Power
Engine model WD615.334(domestic III)
Engine rated power kW/(r/min) 247/2200
Engine rated torque N.m/(r/min) 1350/1400
Travel
Max. travel speed km/h 80
Min. turning diameter m 24
Min. ground clearance mm 291
Approach angle ° 17
Departure angle ° 11
Max. grade ability % 40
Fuel consumption for 100km L 45
Main performance
Max. rated total lifting capacity t 50
Min. rated working radius m 3
Turning radius at turntable tail m 3.482
Max. lifting torque kN.m 1764
Base boom m 11.3
Fully extended boom m 42.7
Fully extended boom+ jib m 57.7
Longitudinal outrigger span m 5.91
Lateral outrigger span m 6.9
Working speed
Boom luffing time s 88
