This 30 ton crawler crane is an excellent construction machine that provides excellent lifting performance for engineering projects. Its sturdy construction and height adjustability make it suitable for a variety of engineering projects. Reliable and efficient, it is ideal for a variety of lifting tasks.
Share :
Description
This 30 ton crawler crane is an excellent construction machine that provides excellent lifting performance for engineering projects. Its sturdy construction and height adjustability make it suitable for a variety of engineering projects. Reliable and efficient, it is ideal for a variety of lifting tasks.
Parameter
Specifications
Item Unit Value Remarks
Max. lifting capacity t 30
Max. lifting moment t×m 123
Main boom length m  10.7-42
Jib length m 8
Max. length of main boom with fixed jib m 42+8
Main boom angle ° -81.5
Jib offset ° 0,15,30
Max. single rope speed of the main hoisting winch m/min 135 Unloaded, the 4th drum layer
Max. single rope speed of the auxiliary hoisting winch. m/min 135 Unloaded, the 4th drum layer
Derricking speed (up/down) s 35
Boom derricking up time s 80
Slewing speed rpm 0-2.7
Traveling speed km/h 0-3
Max. gradeability % 45
Deadweight t 41.2
Counterweight t 12
Overall dimensions (L × W × H) mm 12935×4540(2990)×3000
Engine Model   Weichai WP6G190E301
Rated power / rotational speed kW/rpm 140/2000
Max. output torque / rotational speed Nm/rpm 860/1500
Exhaust emission / Chinese National Stage III
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

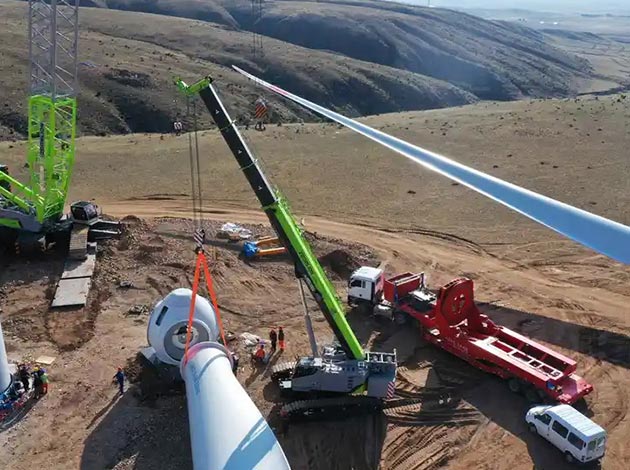

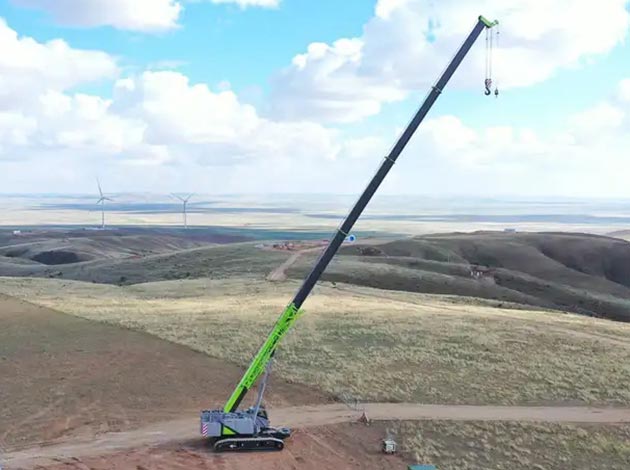

Live shooting of crawler crane
