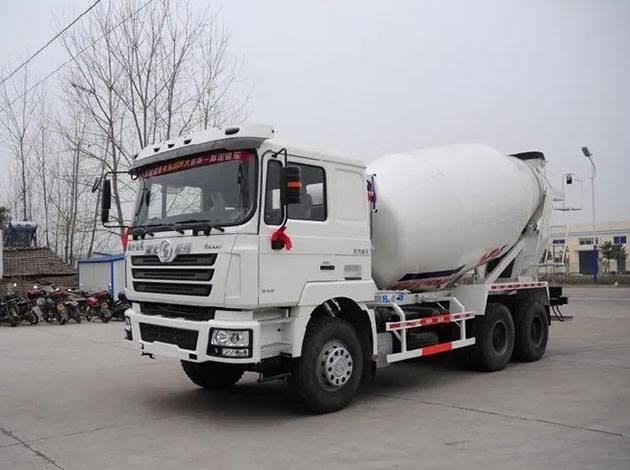

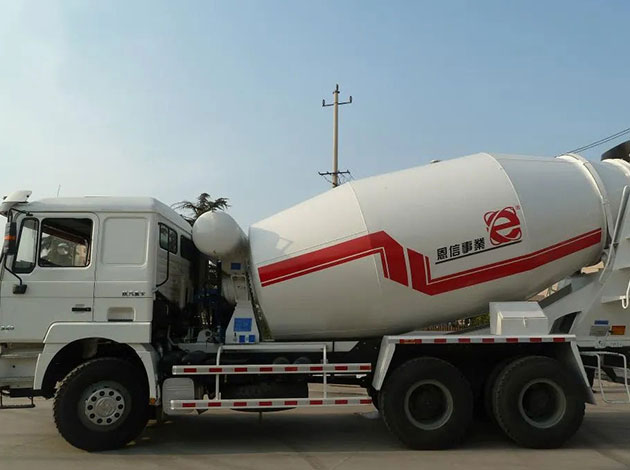

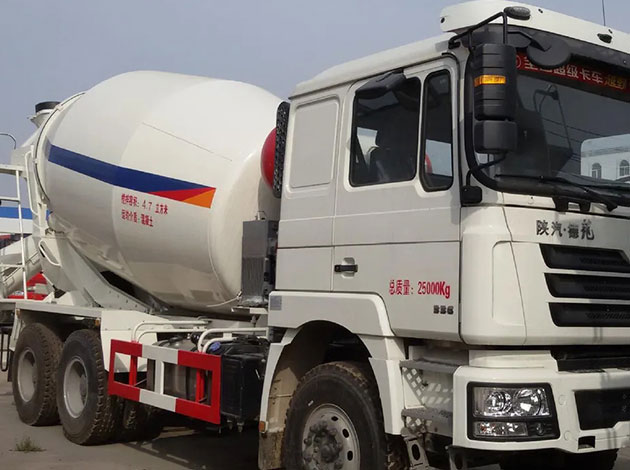

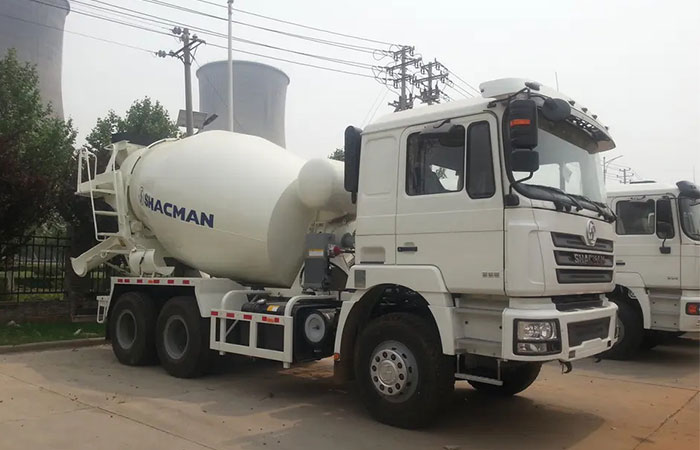

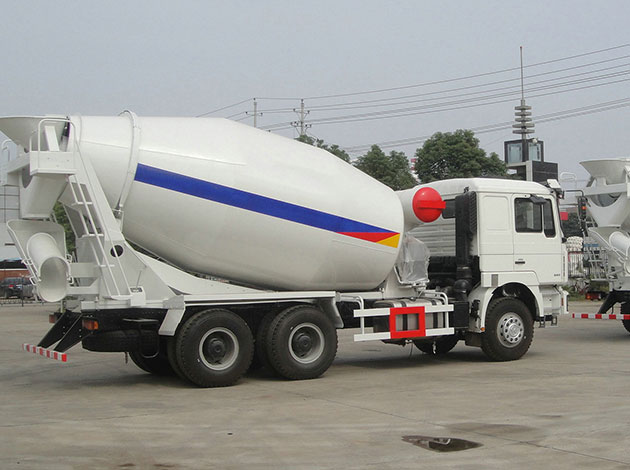

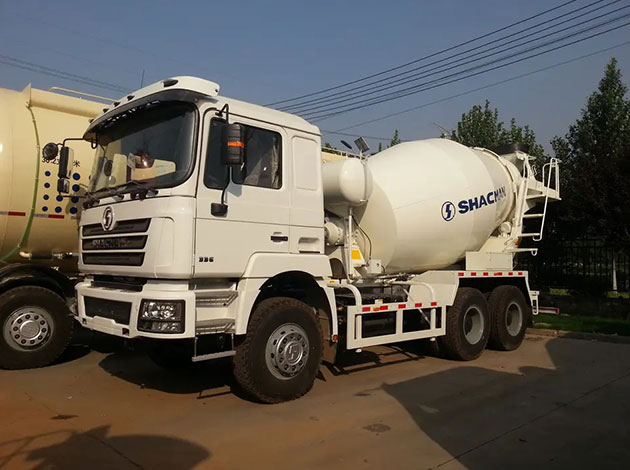

SHACMAN F3000 Concrete Mixer Truck

With its sturdy build and powerful performance, this SHACMAN F3000 can handle concrete mixing and transport with ease.
Share :
Description
This SHACMAN F3000 is the pinnacle of efficiency and reliability in the construction world! With its solid construction and powerful performance, it can handle concrete mixing and transport with ease. In addition, this concrete mixer truck has a large capacity of 9 cubic meters, which can meet the needs of large-scale projects, and can also easily adapt to various projects. Trust in SHACMAN's superior traditional craftsmanship and experience the seamless workflow and unparalleled productivity of the SHACMAN F3000 concrete mixer truck today!
Parameter
Specifications
SHACMAN F3000 6×4 MIXER TRUCK
Cab SHACMAN F3000 Cab  Single bedAir conditioner
Dimension(L x W x H)(mm) 9500×2500×3950mm
Total mass(kg) 25000kg
Kerb mass(kg) 14000kg
Rated mass(kg) 10870kg
Approach / departure angel 20/19
Front/rear suspension(mm) 1525/2445
Max.gradeability(%) 25
Engine brand Weichai Engine
Engine model WP10.300E22,300hp
Rated output power 220kw
Rated speed(rpm) 2200rpm
Emission Standard E-II
Displacement(L) 9.726L
Driving type 6×4
Axle number 3
Wheel base(mm) 3775+1400mm
Clutch φ430diaphragm spring
Gearbox FAST 10JSD180,10 Forward&2Reverse,Manual
Front axle 9.5T MAN  9500kg
Rear axle 16TMAN  2×16000kg
Ratio 5.92
Steering ZFtechnology   left-hand drive(LHD)
Type 12R22.5,10+1pc
Brake system ABS(Four channel)
Tank capacity(L) 400L
Max. speed (km/h) 85km/h
Color optional
Tank volume(m³) 9m³
Pump, Motor/Reducer EATON/TOP
Material of tanker Q345
Thickness Thickness of canister wall:5mm,end socket:6mm
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
