24m Aerial Platform
24m Aerial Platform
24m Aerial Platform

24m Aerial Platform

This 24m Aerial Platform can carry two people for repair or installation work and features an extendable and rotating work platform.
Share :
Description

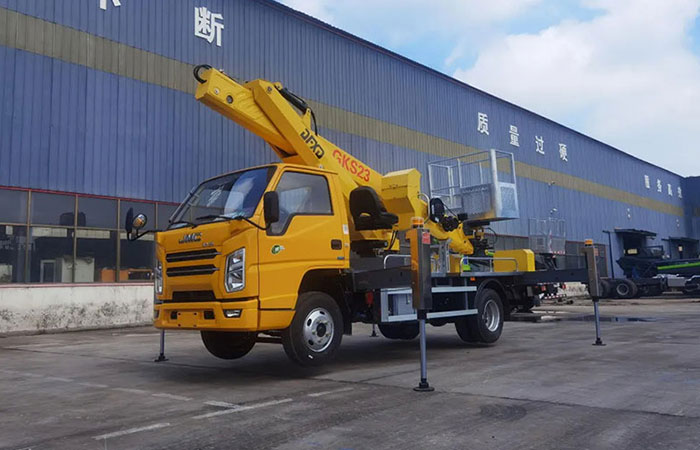

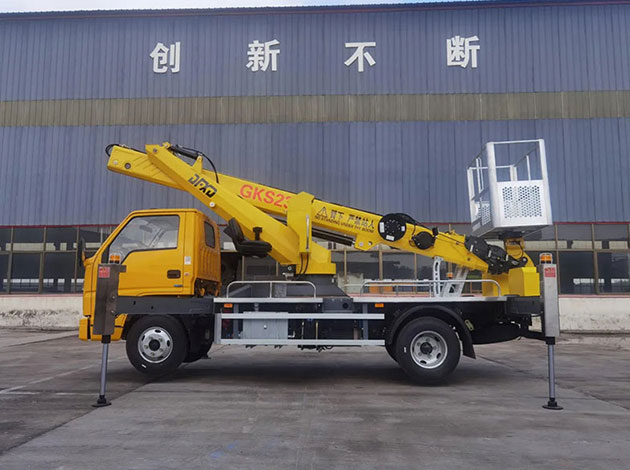

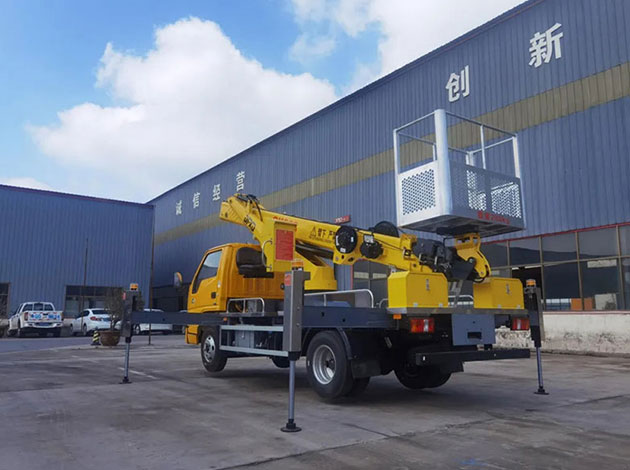

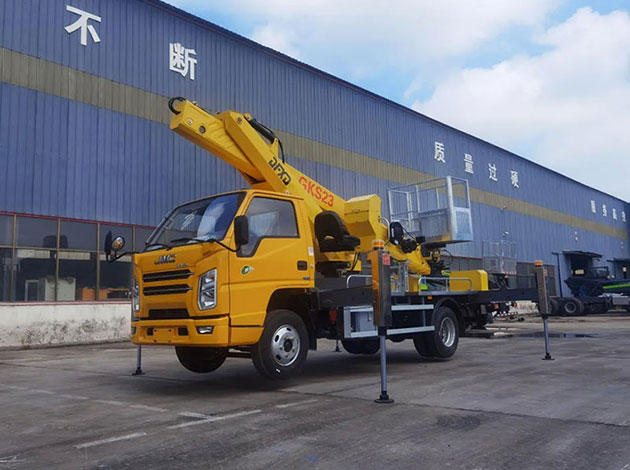

This 24m Aerial Platform Truck is a high quality industrial vehicle designed for working at heights. The Aerial Platform can carry two people for repair or installation work and features an extendable and swivel work platform for easy access to the work area. In addition, this aerial work vehicle is extremely stable, making it ideal for all types of construction, power, telecommunications and urban services.
Parameter
Specifications
DXD5041JGKJX6-24M project unit technical parameter
Vehicle size parameters cabinet minister mm 5995
total width mm 2000
total height mm 2950
total mass kg 4495
wheel base mm 3360
Main performance parameters Maximum operation height m 23.7
Maximum operation range m 14.5
Rated load of the work platform kg 200
Turn table rotation Angle ° ± 360°
Front leg spread width mm 4400
Rear leg spread width mm 4100
Chassis parameters Chassis model - -
engine type - JX4D30B6H
Engine power kw/ps 85/115
effluent standard - or other
Euro 6 or other
Maximum driving speed km/h 100
Approximate number man 2
approach angle ° 20
departure angle ° 15
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
